Navigating the Complexities of Wind Turbine Transportation: A Comprehensive Guide

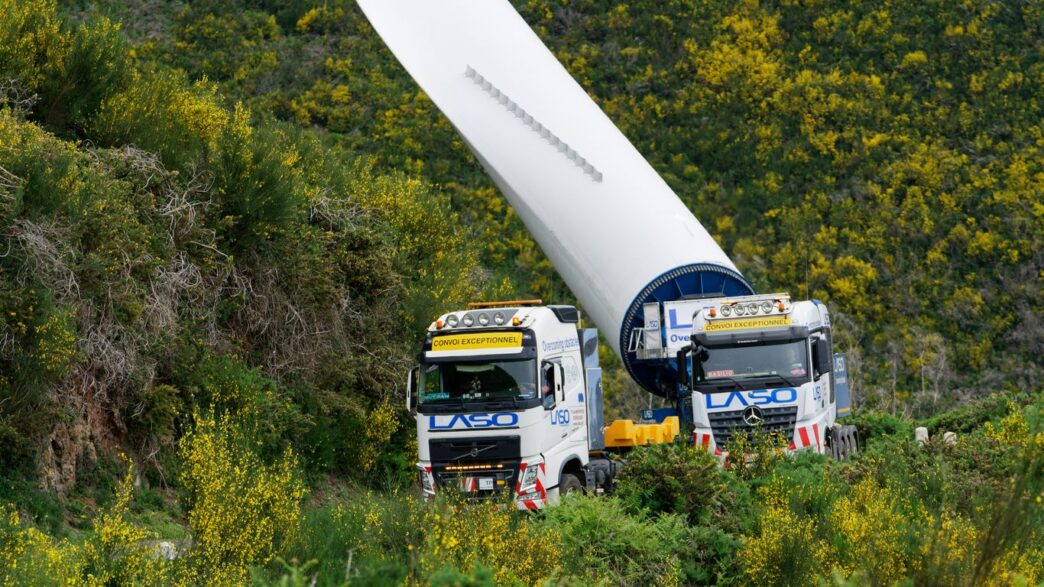

Moving those giant wind turbine blades from where they’re made to where they’ll be installed is a pretty big deal. It’s not like shipping a regular truckload of stuff. These things are huge and heavy, so you need special trucks and careful planning. This guide is all about how that works, covering the tricky parts of wind turbine transportation, the gear you need, and how to get it all done safely and without too many headaches.

Key Takeaways

• Wind turbine blades are massive and heavy, creating unique challenges for transportation.
• Specialized vehicles like modular transporters and extendable trailers are needed for blade movement.
• Careful route planning and surveys are vital to avoid obstacles and ensure safe passage.
• Safety is paramount, requiring secure loads, weather checks, and emergency plans.
• Costs include special equipment, permits, and managing logistics for wind turbine transportation.

Understanding Wind Turbine Blade Transportation Challenges

Moving wind turbine blades from where they’re made to where they’ll be installed is a big job, and it’s not like shipping regular stuff. These things are huge – we’re talking blades that can be over 60 meters long and weigh a ton, or even more. Just getting them onto a truck is a feat.

Navigating Size and Weight Restrictions

The sheer size and weight of these blades mean they don’t fit on standard roads or bridges. You have to think about:

• Road Width: Many roads just aren’t wide enough for a truck carrying a blade that’s wider than the lane itself.
• Bridge Clearances: Low bridges are a major problem. You can’t just drive under them; sometimes you need to find a different route or even get special permission to temporarily lift or modify structures.
• Turning Radii: Sharp turns on city streets or country roads can be impossible to navigate without special maneuvers or even temporary road closures.
• Weight Limits: Bridges and overpasses have weight limits, and these massive blades, plus the transport vehicle, can easily exceed them.

It’s all about careful planning to avoid getting stuck or causing damage.

Addressing Environmental Considerations

When you’re moving something this big, you have to think about the environment. It’s not just about the road. You might need to:

• Protect Sensitive Areas: Routes might need to avoid wetlands, protected habitats, or areas with endangered species. This can mean longer, more complicated routes.
• Minimize Noise and Disruption: Transporting these components can be noisy and disruptive to local communities. Planning routes and times to lessen this impact is important.
• Manage Spills: While unlikely, any transport carries a risk of spills. Having plans in place for fuel or other fluids is part of responsible transport.

Ensuring Regulatory Compliance Requirements

This is where things get really complicated. Every state, and sometimes even local counties, have their own rules about moving oversized loads. You’ll need:

• Permits: Lots of permits. You’ll need permits for the size, weight, and sometimes even for the specific route you plan to take.
• Escort Vehicles: Often, you’ll need police or private escort vehicles to warn other drivers, block intersections, and help guide the load.
• Route Approval: Authorities need to approve your planned route, and they might require specific modifications or restrictions.
• Time Restrictions: Some areas only allow oversized transport during certain hours, like overnight or on weekends, to minimize traffic impact.

Getting all these permissions and following the rules is a huge part of the job. One mistake can lead to hefty fines or delays.

Specialized Equipment for Wind Turbine Blade Transport

Moving those giant wind turbine blades from the factory to where they’ll be installed is no small feat. You can’t just slap them on a regular flatbed and call it a day. The sheer size and weight mean we need some seriously specialized gear. It’s all about making sure these massive components get where they need to go safely and without a hitch.

Utilizing Self-Propelled Modular Transporters

These things, often called SPMTs, are pretty wild. They’re basically a bunch of self-propelled units that can be linked together. You can configure them to fit the blade perfectly, and they’re super maneuverable. Think of them like a train of independent, steerable platforms. This makes them ideal for getting around tricky spots or uneven ground. They can handle the immense weight, distributing it evenly, which is a big deal when you’re dealing with something as long and heavy as a turbine blade. It’s a bit like how BMW’s Vision Vehicle uses advanced materials and a unique shape-shifting design for its mobility [10c3].

Deploying Extendable Blade Trailers

Then you have extendable blade trailers. These are designed specifically for hauling these enormous blades. As the name suggests, they can extend to match the length of the blade, sometimes up to 60 meters or more. This provides the necessary support along the entire length, preventing stress points and ensuring stability during the journey. They often have special couplings and hydraulic systems to tilt and maneuver the blade, keeping it clear of obstacles.

Developing Custom Engineering Solutions

Sometimes, even the specialized stuff isn’t quite enough. For really unique projects or blades with unusual dimensions, companies might need to get custom engineering solutions. This means working with equipment manufacturers to design and build something specifically for that particular transport job. It could involve modifying existing trailers, creating unique lifting frames, or developing entirely new transport systems. It’s all about finding the right tool for the job, no matter how big or awkward the load might be.

Meticulous Route Planning for Wind Turbine Transportation

So, you’ve got these giant wind turbine blades, right? They’re not exactly something you can just toss in the back of a pickup truck. Getting them from the factory to where they’ll actually generate power is a whole operation, and a big part of that is figuring out the best way to get them there. This means looking at every single road, bridge, and turn along the way.

Conducting Comprehensive Route Surveys

Before anything even moves, people have to go out and check the actual roads. It’s not enough to just look at a map. You need to see if the roads are wide enough, if the bridges can actually hold the weight, and if there are any low-hanging wires or trees that could cause a problem. They measure everything – the width of the road, the height of overpasses, even the turning radius at intersections. It’s pretty detailed work.

• Measure all road widths and identify potential pinch points.
• Check bridge clearances and weight limits meticulously.
• Assess road surface conditions and any necessary repairs.
• Identify and plan for any necessary temporary road modifications.

Optimizing Logistics for Oversized Cargo

Once you know what the roads can handle, you have to figure out the best path. This isn’t just about the shortest distance; it’s about the most practical. Sometimes, a slightly longer route is way better if it avoids a really tricky section or a place where you’d need a lot of special permits. You also have to think about when you’re going to move them. Moving during off-peak hours usually makes sense to avoid traffic jams.

Here’s a quick look at what goes into planning:

Minimizing Disruptions During Transit

The goal is to get these blades moved without causing a huge mess. That means coordinating with local authorities, letting people know when a big transport is coming through, and trying to keep things moving as smoothly as possible. Sometimes, you might need to temporarily close off roads or reroute traffic. It’s all about planning ahead to make sure the transport happens with as little impact on daily life as possible. The entire process hinges on detailed planning to avoid unexpected delays and ensure public safety.

Prioritizing Safety in Wind Energy Component Transport

When you’re moving something as big as a wind turbine blade, safety isn’t just a suggestion; it’s the whole ballgame. We’re talking about components that are hundreds of feet long and weigh many tons. Messing up here isn’t just inconvenient, it can be really dangerous. So, we put a lot of effort into making sure everything is secure and everyone involved stays safe.

Implementing Advanced Load Securing Methods

Getting these massive blades tied down properly is a big deal. It’s not like strapping down a couch. We use specialized systems that are designed to handle the extreme weight and length. This involves a mix of heavy-duty straps, custom-fit cradles, and sometimes even specialized bracing. The goal is to stop any shifting or movement during transit, no matter what the road throws at us. Our teams check and re-check these setups constantly. It’s all about making sure the load stays put, from the moment it leaves the factory until it reaches the wind farm site. Proper securing is key to preventing accidents and damage to the wind turbine components.

Utilizing Weather Monitoring Systems

Weather can change in a heartbeat, and for oversized loads like turbine blades, that can be a serious problem. We keep a close eye on forecasts using advanced monitoring tools. This helps us plan our routes and schedules to avoid the worst conditions, like high winds or heavy rain, which could make transport risky. If bad weather pops up unexpectedly, we have plans in place to pull over safely or adjust our route. It’s about being prepared and making smart decisions based on real-time information.

Establishing Emergency Response Procedures

Even with the best planning, things can still go wrong. That’s why we have solid emergency plans ready to go. These cover everything from equipment breakdowns to unexpected road closures or accidents. Our response teams are trained to handle a variety of situations quickly and effectively. They know how to secure the load, manage traffic, and coordinate with local authorities if needed. Having these procedures in place means we can react fast to minimize any potential issues and keep everyone safe.

Key Cost Factors in Wind Turbine Blade Shipping

Shipping those massive wind turbine blades isn’t exactly cheap, and there are a bunch of things that add up. You really have to think about the whole picture when budgeting for these projects.

Accounting for Specialized Equipment Expenses

First off, the gear needed to move these things is pretty wild. We’re talking about special trailers that can extend way out, and these self-propelled modular transporters that look like something out of a sci-fi movie. Buying or even renting this stuff is a big chunk of the cost. It’s not like you can just hop down to the local truck rental place for a blade trailer, you know?

Managing Regulatory and Environmental Costs

Then there are the permits. Oh, the permits. You need them for everything – crossing state lines, using certain roads, sometimes even for specific times of day. And don’t forget the environmental side of things. Sometimes you have to pay extra to make sure you’re not messing up sensitive areas or to do things like reinforce a bridge that might not handle the weight. It all adds up.

Addressing Ancillary Logistics Expenses

Beyond the big ticket items, there are a lot of smaller costs that creep in. You often need escort vehicles to clear the way and warn other drivers, which means more drivers and more fuel. Sometimes, you have to pay to temporarily change traffic lights or even trim trees along the route. Plus, you’ve got to factor in things like weather monitoring to avoid bad storms and having plans ready if something goes wrong. It’s a lot to keep track of, but getting it right means the blades get where they need to go without a hitch.

Streamlining Port Operations for Wind Turbine Components

Getting those massive wind turbine parts through ports is a whole operation. It’s not like moving regular cargo; these things are huge and heavy. So, making sure the port side of things runs smoothly is a big deal for the whole transport job.

Coordinating with Port Authorities

First off, you absolutely have to talk to the people who run the port. This means getting all the right paperwork sorted out way ahead of time. You need permits and permissions, and different ports have different rules. It’s about making sure everything is above board and that you’re not causing any unexpected problems for the port’s daily business. This early coordination prevents delays and potential fines.

Executing Specialized Loading and Unloading

When the ship arrives, or when the components are ready to move off the dock, it’s a careful dance. You’ll see big cranes, special lifting gear, and sometimes even self-propelled trailers that can move these giant pieces. The crew needs to know exactly how to attach the lifting equipment without damaging the blades or other parts. It’s a slow, deliberate process. Think about:

• Securing the load: Making sure the blades are tied down properly so they don’t shift during loading or unloading.
• Weight distribution: Balancing the load so the cranes and trailers can handle it safely.
• Clearance checks: Constantly checking that there’s enough space around the component as it moves.

Implementing Proper Storage and Handling

Sometimes, the components have to wait at the port for a bit before they can be moved inland. Ports need to have designated areas for this. These spots need to be stable, out of the way of other port traffic, and sometimes covered if the weather is bad. Proper handling means using the right equipment to move them within the port area, like specialized dollies or forklifts, to avoid any bumps or scrapes. It’s all about keeping these valuable pieces in good condition until they’re ready for the next leg of their journey.

Effective Logistics Coordination for Wind Turbine Transportation

Getting those massive wind turbine blades from the factory to the wind farm site is a huge undertaking. It’s not just about having the right truck; it’s about making sure everyone involved is on the same page and that the whole process runs like clockwork. Think of it like a really complicated dance where every partner has to hit their marks perfectly.

Managing Stakeholder Communication

First off, you’ve got a lot of people to talk to. This includes the folks who made the blades, the trucking company, the port authorities if it’s coming by sea, the local governments for permits, and the team actually building the wind farm. Keeping everyone informed is key. We make sure to have regular check-ins and clear lines of communication so there are no surprises. Open and honest communication prevents misunderstandings and keeps the project moving forward.

Ensuring Precise Timeline Management

Time is money, especially in big construction projects like wind farms. We map out the entire journey, from when the blade leaves the factory to when it arrives at the site. This involves looking at transit times, potential delays at ports or during customs, and even how long it takes to load and unload. We build in buffer time for unexpected issues, like bad weather or road closures, because those things happen.

Here’s a general idea of how a timeline might look:

• Manufacturing to Port: 1-3 days
• Port Handling & Loading: 1-2 days
• Sea Voyage (if applicable): Varies greatly by distance
• Port to Site Transfer: 2-5 days (depending on route complexity)
• On-site Placement: 1 day per blade

Handling Complex Documentation Requirements

This is where things can get really bogged down if you’re not careful. Every step of the way requires paperwork. You’ll need permits for oversized loads, transport manifests, customs declarations if it’s international, and safety certifications. We have a team that specializes in this, making sure all the i’s are dotted and t’s are crossed. It’s a lot of detail work, but it’s absolutely necessary to avoid costly delays or fines.

Leveraging Technology in Wind Turbine Blade Transport

Moving these giant blades from the factory to the wind farm site isn’t just about brute force; it’s also about smarts. Technology plays a huge role in making sure everything goes smoothly and safely. We’re talking about using the latest tools to keep track of where things are, how they’re doing, and all the paperwork involved.

Implementing GPS Tracking Systems

Think of GPS tracking as the eyes on the road for your blades. Every truck carrying a blade is fitted with a GPS unit. This means we always know exactly where the shipment is, down to the minute. It’s not just for show; it helps us give clients real-time updates, so they know when to expect their delivery. This kind of visibility is a big deal for coordinating with the site teams.

Utilizing Real-time Monitoring Solutions

Beyond just location, we also need to know if the blades themselves are okay during the trip. That’s where real-time monitoring comes in. Sensors can be attached to the blades or the transport equipment to keep an eye on things like vibration, temperature, and stress. If anything looks like it’s outside the normal range, an alert goes out. This lets us react fast, maybe by adjusting speed or rerouting, to prevent any damage. It’s like having a doctor constantly checking on the patient.

Adopting Digital Documentation Platforms

All the paperwork for transporting something this big can be overwhelming – permits, customs forms, inspection reports, you name it. Digital platforms help us manage all of this. Instead of stacks of paper, everything is stored electronically, making it easier to access, share, and track. This speeds up processes, reduces the chance of errors, and makes sure we’re always compliant with regulations. It’s a much cleaner way to handle the administrative side of things.

Wrapping It Up

So, moving those giant wind turbine blades is definitely not like shipping a regular package. It’s a whole different ballgame with its own set of rules and tricky bits. We’ve talked about how big they are, the special trucks needed, and why planning the route is so important. Plus, keeping things safe and following all the rules is a big deal. It’s a lot to think about, but getting these parts where they need to go is key for building more wind power. Hopefully, this guide made it a little clearer how this whole process works.
