So, you’ve probably heard about flip chip IC technology, maybe in passing or maybe you’re knee-deep in a project that needs it. It’s this pretty neat way of putting computer chips onto circuit boards. Instead of the usual way things are connected, the chip gets flipped over and attached directly. This might sound simple, but it changes a lot about how electronics work, making them faster and smaller. We’re going to break down what it is, how it’s made, why it’s better in some cases, and what you need to watch out for. It’s all about getting the most out of these tiny pieces of tech.
Key Takeaways
- Flip chip IC technology connects chips directly to a board, flipping the chip over for a more efficient link.
- The process involves preparing the wafer, forming small bumps, placing the chip, melting the bumps to make connections, and then protecting it all.
- This method is great for making electronics faster, better at handling heat, and allows for more connections in a smaller space.
- Compared to older methods like wire bonding, flip chip IC offers better performance and smaller sizes, but can be trickier to work with.
- When designing with flip chip IC, you need to think carefully about how it’s made, assembled, and tested to avoid problems down the line.
Understanding Flip Chip IC Technology
So, what exactly is this ‘flip chip’ thing everyone’s talking about in the world of integrated circuits? Basically, it’s a way to connect a computer chip, or ‘die’, to a circuit board. Instead of the usual method where the chip sits face-up and wires connect it, a flip chip is literally flipped over. Its active side, the part with all the connections, faces down and connects directly to the board through tiny little bumps. This direct connection is the big deal.
What is Flip Chip IC Technology?
At its core, flip chip technology is a packaging method. Think of it like this: imagine you have a tiny city (the chip) with lots of roads leading out (the connections). In traditional packaging, you’d build bridges (wires) from the edge of the city to the mainland (the circuit board). With flip chip, you flip the city upside down and connect it directly to the mainland using short, sturdy pillars (the bumps) that are already part of the city’s structure. This changes everything about how signals travel and how heat gets out.
Historical Development of Flip Chip
This idea isn’t brand new, believe it or not. IBM was messing around with something similar way back in the 1960s. They called it C4 (Controlled Collapse Chip Connection) technology. It was pretty advanced for its time, mainly for their big mainframe computers. But it didn’t really take off for the masses until the 1990s. That’s when portable electronics started booming, and we all needed more power in smaller packages. Since then, it’s become a go-to for everything from your smartphone to supercomputers.
Key Components of Flip Chip IC
There are a few main players in the flip chip game:
- The Die: This is the actual silicon chip itself, the brain of the operation.
- The Bumps: These are small, raised balls or pillars, usually made of solder, that sit on the connection points (pads) of the die. They’re what make the direct connection.
- The Substrate/Board: This is the circuit board the chip is attached to. It has matching connection points.
- Underfill (often): After the chip is flipped and connected, a special epoxy material is often flowed into the gap between the chip and the board. This adds strength and protects the connections.
The Flip Chip IC Packaging Process
So, how do we actually get these tiny chips onto a board using the flip chip method? It’s a pretty neat process, and honestly, it’s not as complicated as it might sound at first. Think of it like building with really, really small LEGOs, but with a lot more precision involved. The whole idea is to connect the chip directly to the board, skipping the usual wires.
Wafer Preparation and Bump Formation

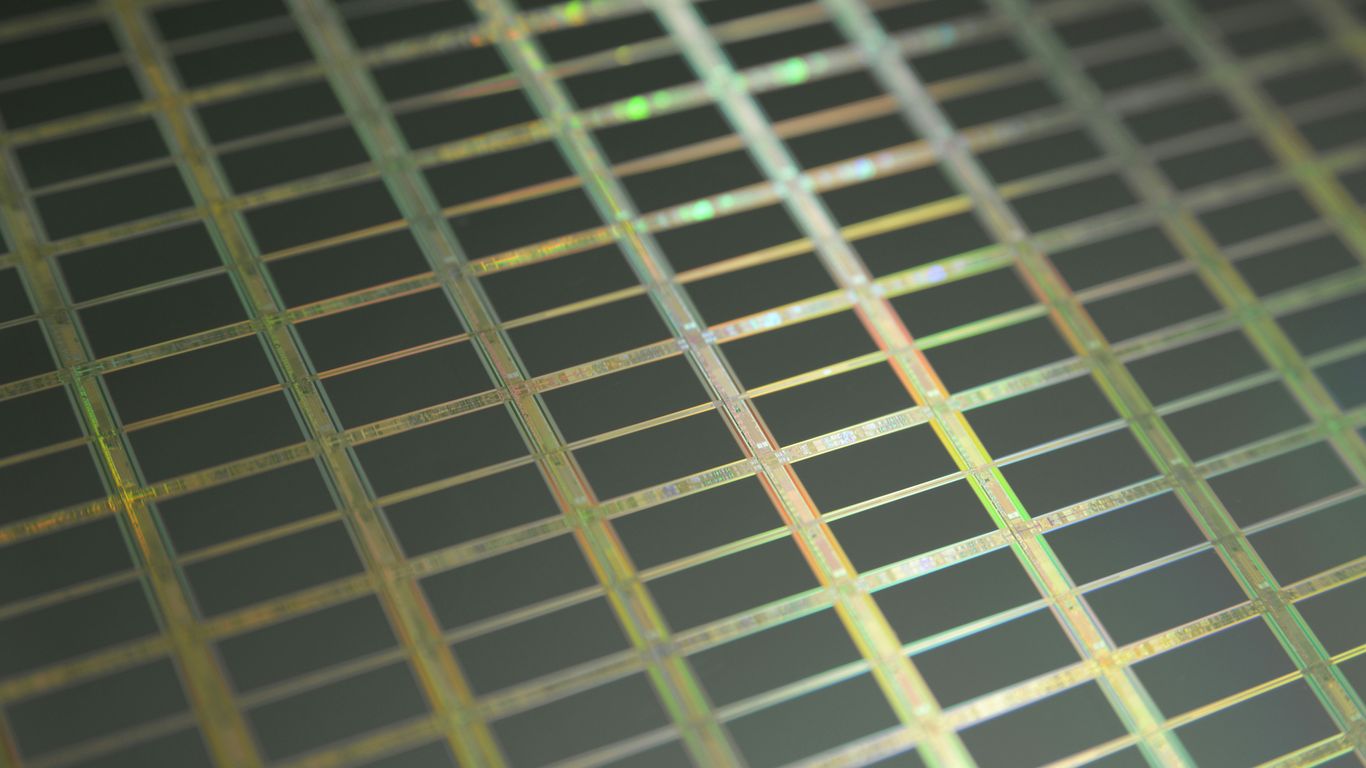

First off, we start with a whole wafer, which is basically a big disc covered in many identical chips. Before we can even think about separating them, we need to put little connection points on each chip. These are called "bumps," and they’re usually made of solder. Imagine tiny little metal pillars that will later melt to form the connection. This bumping process can be done in a few ways, like plating the solder on or printing it like ink. The goal is to have these bumps ready on the contact pads of each individual chip on the wafer.
Chip Dicing and Placement
Once the bumps are in place, it’s time to cut the wafer. This is called dicing, and it’s like carefully slicing a pizza into individual slices, but with lasers or diamond saws. Each slice is now a single chip. The next big step is the "flip" part. We take these individual chips and flip them upside down – hence the name "flip chip." Then, we carefully align the bumps on the chip with the corresponding pads on the circuit board or substrate. It’s a bit like trying to land a drone perfectly on a tiny target.
Solder Reflow and Encapsulation
Now that the chip is flipped and in place, we need to make those connections permanent. This is where solder reflow comes in. The whole assembly goes into a special oven that heats it up just enough to melt the solder bumps. As they melt, they form strong electrical and mechanical bonds between the chip and the board. After the solder cools and solidifies, there’s usually a protective material, like epoxy, applied around the chip and the connections. This "underfill" or encapsulation protects everything from bumps, moisture, and other environmental nasties, making the whole package much more robust.
Advantages of Flip Chip IC Integration
So, why are we even bothering with flip chip technology? Well, it turns out there are some pretty good reasons why engineers are choosing it for all sorts of gadgets. It’s not just about making things smaller, though that’s a big part of it. The real magic happens with how the chip connects to everything else.
Enhanced Electrical Performance
This is a big one. With flip chip, the connections between the chip and the board are super short. Think of it like taking a shortcut on a road trip – you get there faster and with less fuss. These short paths mean less electrical resistance and inductance. What does that mean for you? Faster signals, less signal loss, and better performance, especially when you’re dealing with high-speed stuff like in your phone or a fast computer. It’s like upgrading from a dirt road to a superhighway for data.
Improved Thermal Management
Electronics generate heat, and too much heat is bad news for reliability. Flip chip helps out here too. Because the chip is flipped over and mounted directly onto the substrate, there’s a more direct path for heat to escape. It’s like giving the chip a direct vent to the outside instead of having it trapped under layers of packaging. This direct thermal path can handle more heat, which is pretty important for powerful processors or components that run hot. Some data suggests flip chip packages can handle power densities significantly higher than older methods.
Increased I/O Density and Smaller Form Factor
Remember when electronics used to be bulky? Flip chip is a big reason why they’re not anymore. Instead of just having connection points around the edges of the chip like in older designs, flip chip uses an array of bumps spread across the entire bottom surface. This means you can cram way more connections (I/Os) onto a single chip. More connections in the same space, or even less space, is the name of the game. This allows for more complex chips and, importantly, much smaller final products. Think about how thin your smartphone is now compared to phones from 20 years ago – flip chip played a role in that miniaturization.
Flip Chip IC vs. Traditional Packaging
So, how does flip chip stack up against the older ways of doing things, like wire bonding? It’s a pretty big difference, honestly. Think about it: wire bonding uses tiny wires to connect the chip to the package. It’s been around forever and it works, but it has its limits. Flip chip, on the other hand, flips the chip over and connects it directly using little bumps. This direct connection is a game-changer for a few reasons.

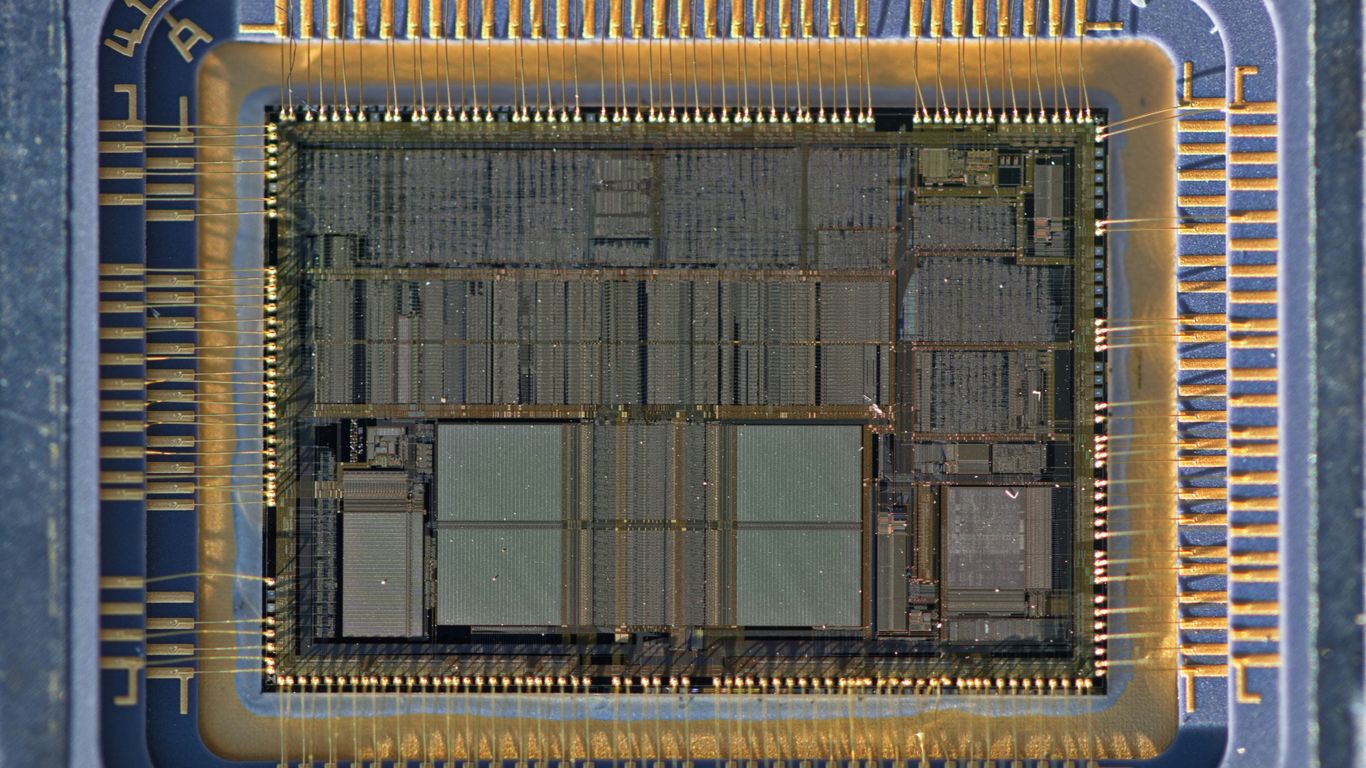

Comparison with Wire Bonding
Wire bonding is like using a bunch of tiny threads to link your chip to the outside world. It’s a tried-and-true method, but those threads add length, which means more resistance and inductance. This can slow down signals, especially when you’re dealing with high speeds. Plus, you’re limited in how many connections you can make because they all have to go around the edge of the chip.
Flip chip flips that idea on its head. By connecting directly with bumps, the path for signals is much shorter. This means less resistance, less inductance, and faster signals. It’s like going from a winding country road to a straight highway. You can also pack way more connections onto the chip because the bumps can be spread out across the whole surface, not just the edges. This is a huge deal for packing more power into smaller devices.
Here’s a quick look at the main differences:
- Signal Path Length: Wire bonding has longer paths; flip chip has much shorter paths.
- I/O Density: Wire bonding is limited; flip chip allows for much higher density.
- Performance: Wire bonding can be slower due to inductance/resistance; flip chip offers better high-speed performance.
- Thermal Management: Wire bonding can be trickier; flip chip often has a more direct path for heat to escape.
Comparison with Ball Grid Array (BGA)
Now, comparing flip chip to Ball Grid Array (BGA) is a bit more nuanced because BGA itself often uses flip chip technology internally. A BGA package is essentially a way to package a chip, and one of the most common ways to get the chip inside that BGA package is by using flip chip. So, it’s less of an ‘either/or’ and more of a ‘how it’s done’.
Traditional BGA packaging might involve wire bonding the chip to an interposer, which then has solder balls attached. But with flip chip BGA, the chip is flipped and connected via bumps to the interposer, and then the solder balls are attached to the bottom of the interposer. This still gives you all the benefits of flip chip – shorter connections, better performance – within the familiar BGA form factor.
Think of it this way: BGA is the outer shell, the way the whole package connects to the circuit board. Flip chip is often the method used inside that shell to connect the actual silicon die to the internal structure of the BGA. So, when people talk about BGA vs. flip chip, they’re often really comparing a wire-bonded BGA to a flip-chip-bonded BGA.
Decision Matrix for Technology Selection
Choosing between these technologies isn’t always straightforward. It really depends on what you need the chip to do. Here’s a simplified way to think about it:
- For High-Speed/High-Frequency Applications: Flip chip is usually the winner. Those short, direct connections make a big difference when every nanosecond counts.
- For High I/O Count Needs: If you need a ton of connections, flip chip’s area-array bumping capability is hard to beat.
- For Cost-Sensitive, Lower-Performance Needs: Traditional wire bonding might still be the most economical choice, especially for lower volumes or less demanding applications.
- For Compact Devices: Both flip chip and BGA (which often uses flip chip) excel at making things smaller. If you need a thin profile, flip chip is a strong contender.
- For Ease of Testing (Pre-Assembly): Wire-bonded chips can sometimes be tested more easily before they’re fully packaged. Flip chips, being bare die, can be trickier to test before the final assembly steps.
Ultimately, the trend is definitely moving towards flip chip for advanced applications because the performance and density gains are just too significant to ignore for modern electronics.
Design and Manufacturing Considerations for Flip Chip IC
Alright, so you’re looking at using flip chip technology for your next project. That’s pretty cool, but it’s not quite as simple as just slapping a chip down. There are definitely some things you need to think about beforehand, both on the design side and when it comes to actually making the thing. It’s all about making sure everything lines up perfectly and works as it should.
Design for Manufacturability (DFM)
This is all about making sure your design can actually be built without a ton of headaches. You’ve got to talk to your manufacturer and figure out what their limits are. For instance, what’s the smallest trace width and spacing they can handle? You also need to make sure your chip’s bump pads line up with the stencil openings and the bumps themselves. Using weird pad shapes that aren’t standard? Probably best to avoid that unless you absolutely have to. Getting these details right early on saves a ton of time and money later.
Design for Assembly (DFA)
Once the parts are made, you’ve got to put them together. For flip chip, this means things like adding special markers, called fiducials, to your board. These help the machines align the chip perfectly. You also need to be clear about what kind of underfill material you’re using and how it’s applied – that stuff is important for reliability. And don’t forget to give the assembly house a clear drawing showing how everything should go together, along with the right temperature profile for soldering.
Design for Testability (DFT)
Testing is a big deal, especially with flip chip where you can’t always see what’s going on underneath. You’ll want to add test points to your board. This lets you hook up equipment to check if the chip is working correctly after it’s assembled. Things like JTAG (Joint Test Action Group) are pretty standard for this. If you can, allowing for boundary scan access makes testing much easier, even if you can’t directly see every connection.
Here’s a quick rundown of what you’ll likely need to provide:
- Design Files: Usually Gerber or ODB++ format.
- Bill of Materials (BOM): A clear list of all the parts, with part numbers.
- Pick-and-Place File: Tells the assembly machine exactly where each component goes.
- Stackup Drawing: Shows how the layers of your board are arranged, including any impedance control details.
Challenges and Reliability in Flip Chip IC
So, while flip chip tech is pretty neat for packing a lot of power into small spaces, it’s not all sunshine and rainbows. There are definitely some tricky bits to watch out for, both when you’re making them and down the road when they’re supposed to be working.
Common Manufacturing Issues
Making these tiny things work perfectly every time is a real art. You can run into a few common headaches:
- Bump Problems: Sometimes the solder bumps themselves can be faulty. We’re talking about opens (no connection) or shorts (unwanted connections) between them. This can happen during the bumping process or even during assembly.
- Underfill Woes: That gooey stuff, the underfill, is there to protect the bumps and the chip. But if it’s not applied right, you can get voids – little air bubbles – trapped underneath. These voids can weaken the connection over time or cause stress points.
- Warping: Believe it or not, the chip or the board it’s attached to can actually bend or warp. This can be due to temperature changes during manufacturing or even just the stress of the assembly. It messes with the connections.
- Cleaning Gaps: Getting everything perfectly clean under the chip after it’s attached is super important. If there’s leftover flux or gunk, it can cause corrosion or electrical issues later on.
Inspection Techniques for Flip Chip IC
Because a lot of the critical connections are hidden under the chip, you can’t just eyeball them. That’s where special tools come in:
- X-ray Inspection: This is a big one. X-rays can see right through the chip and the board to check out the solder bumps and the connections. You can spot voids, misalignments, and bad joints this way. Both 2D and 3D X-ray are used.
- Scanning Acoustic Microscopy (SAM): This uses sound waves to look for delamination (where layers separate) or voids, especially in the underfill material. It’s great for finding those hidden flaws.
- Automated Optical Inspection (AOI): While AOI can’t see under the chip, it’s still useful for checking the parts of the assembly that are visible, like the edges of the chip or any external connections. It’s quick for spotting obvious surface issues.
Ensuring Long-Term Reliability
Getting a flip chip to work right out of the gate is one thing, but making sure it keeps working for years, especially in tough conditions, is another. Reliability testing is non-negotiable for critical applications.
- Thermal Cycling: This involves repeatedly heating and cooling the assembly. It simulates how temperature changes in the real world can stress the solder joints and materials, potentially causing them to crack or fail over time.
- Vibration Testing: For devices that might get shaken around (think automotive or portable electronics), testing under vibration helps find weaknesses in the mechanical connections.
- Moisture Sensitivity Testing: Electronics can absorb moisture, which can cause problems when heated. This test checks how well the flip chip assembly holds up when exposed to humidity and temperature.
Basically, you’ve got to be thorough. The tiny size and direct connections that make flip chip so great also mean that any little problem can become a big deal if you’re not careful with manufacturing and testing.
Wrapping It Up
So, that’s the lowdown on flip chip technology. It’s pretty wild how flipping a chip over and using little bumps instead of wires can make such a big difference. We’ve seen how it helps make electronics smaller, faster, and better at handling heat. It’s not exactly simple to put together, and testing can be a bit tricky, but the payoff for things like super-fast computers or tiny gadgets is huge. As our gadgets keep getting more demanding, expect to see more of this flip chip stuff. It’s definitely a key player in making the next wave of cool tech happen.
Frequently Asked Questions
What exactly is flip chip technology?
Imagine a tiny computer chip. Instead of connecting it with thin wires like we used to, flip chip technology flips the chip upside down and sticks it directly onto a circuit board using tiny solder bumps. It’s like giving the chip a direct handshake with the board instead of passing notes through wires.
Why is it called ‘flip chip’?
It’s called ‘flip chip’ because the chip is literally flipped over, or upside down, before it’s attached to the circuit board. The side with all the connections faces down, touching the board.
What’s the big deal about flip chips? Why not just use wires?
Flip chips are faster and better at handling heat. Since the connections are super short and direct, signals travel quicker. Also, heat can escape more easily because the chip is directly on the board, which helps keep things from getting too hot.
Are flip chips smaller than other chips?
Yes, they can be! Because the connections are made with tiny bumps all over the chip’s surface instead of just around the edges with wires, you can fit more connections in a smaller space. This helps make electronic gadgets smaller and more powerful.
Is flip chip technology new?
The idea has been around for a while, starting in the 1960s! But it really became popular and widely used in the 1990s as electronics started getting smaller and needed to be faster. It’s been improving ever since.
Can flip chips be used in all electronics?
Flip chips are great for high-performance devices like powerful computers, smartphones, and advanced gadgets where speed and heat management are really important. While not every simple device needs them, they are becoming more common as we want more power in smaller packages.
